Szczegóły Produktu:
|
| Średnica koszyka: | Ø800mm | Maksymalna pojemność ładowania: | 180kg/kosz |
|---|---|---|---|
| Najkrótszy cykl produkcyjny: | 180S | Maksymalna pojemność: | 3600 kg/godz |
| Pionowa prędkość odśrodkowa: | 320 obr./min | Szybkość zbierania spalin: | 95% |
| Maksymalny kąt pochylenia: | 60 ° | Odpowiednia długość przedmiotu obrabianego: | ≤ 200 mm |
| Rozmiar maszyny: | 2550×2250×3280mm | Całkowita moc: | ≤ 30 kW |
| Odpowiedni piec: | Piec z taśmą siatkową serii LF firmy Junhe. Piec wielowarstwowy serii LB firmy Junhe | Odpowiednia farba: | Wszystkie rodzaje farb na bazie wody i rozpuszczalników |
| Odpowiednie elementy robocze: | ≤200mm zewnętrzne i wewnętrzne śruby sześciokątne, śruby krzyżowe, nakrętki, części tłoczone | Inny: | *Powyższe parametry wydajności mogą się różnić w zależności od procesu produkcyjnego, doboru elektry |
| Podkreślić: | automatic gantry coating machine,dip spin coating equipment,industrial coating machine with warranty |
||
Introduction

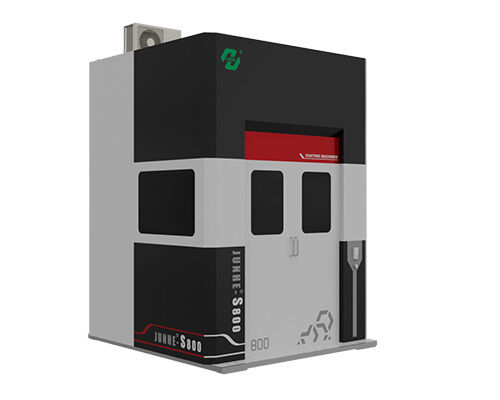

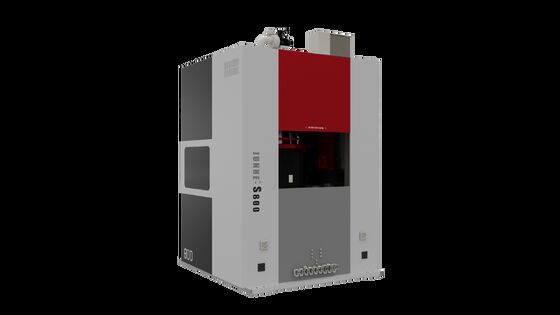

JUNHE® TDST0800H Automatic Gantry-Type Coating Machine can meet the coating requirement of blind hole automotive fasteners,hardware parts, batch control,high production rate,it can be centrifuged horizontally and vertically at nearly 90 degree,safety and environmental friendly,prevent mixing materials,double basket,low operating cost,informatization,intelligent and IOT upgrade.
Functional Proprty
1. Modular Standardization
Features modularization and standardization, with a built-in electrical cabinet.
The whole machine is assembled, ready for use upon hoisting, and easy to install.
Supports optional intelligent and IoT-enabled functions for convenient upgrades.
Matches Junhe® standard sintering furnaces with no debugging required.
2. Wide Range of Applicable Workpieces
Equipped with both automatic and manual feeding functions.
Automatic feeding for small workpieces and manual feeding for large workpieces.
Prevents collision and damage to workpieces.
3. High Good Product Rate & Efficiency
Adopts high-speed centrifugation and tilted low-speed flipping to ensure uniform surface coating.
Reduces the liquid accumulation rate of blind-hole parts.
Features dual-basket in-and-out design to improve efficiency.
4. Excellent Safety & Environmental Protection
Prevents paint splashing with a fully enclosed structure.
Equipped with a centralized waste gas collection system.
Suitable for the application of both water-based and oil-based coatings.
5. Good Batch Management
Each batch of workpieces is weighed and processed in accordance with process requirements.
The entire process runs automatically with full-process monitoring and recording.
No material jamming risk points throughout the process.
6. Multiple Optional Modules
Offers a variety of optional modules, including:Wearing parts are standardized and modularized. Modules support plug-and-play, enhancing flexibility and maintenance efficiency.
Coater module, feeding module, weighing module, anti-collision module
Unloading module, robotic handling module, coating temperature control module
Coating control and detection module, waste gas treatment module
