Szczegóły Produktu:
|
| Szczegóły pakowania: | Płaski stojak 20' | Czas dostawy: | Trzy miesiące po otrzymaniu zaliczki |
|---|---|---|---|
| Kolor: | czerwony i szary | Maksymalne obciążenie kosza: | 60 kg |
| Maksymalna prędkość wirowania: | 5-260 obr./min | Najkrótszy czas produkcji: | 170-180 lat |
| Maksymalna pojemność: | 3600 g/h (na przykład w oparciu o pełny gwint M10×50mm | Najkrótszy cykl: | 3 min |
| Max. Pojemność: | 3,6 tony/godzinę | ||
| Podkreślić: | six-basket planetary coating machine,dip spin coating machine with warranty,JUNHE TDSP0500 coating equipment |
||
Description

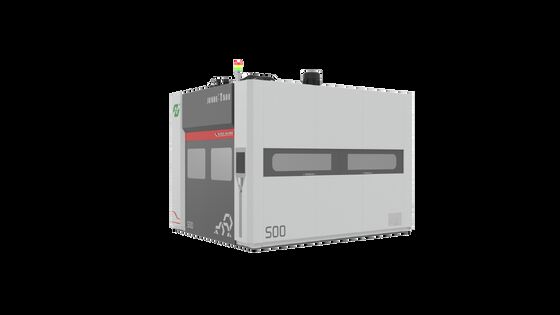

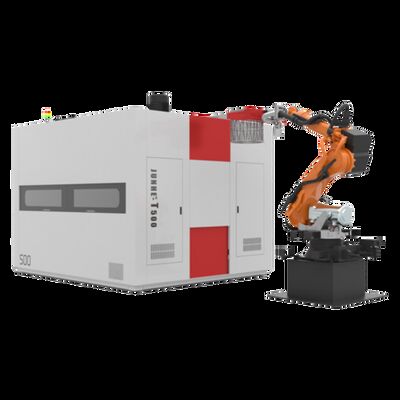

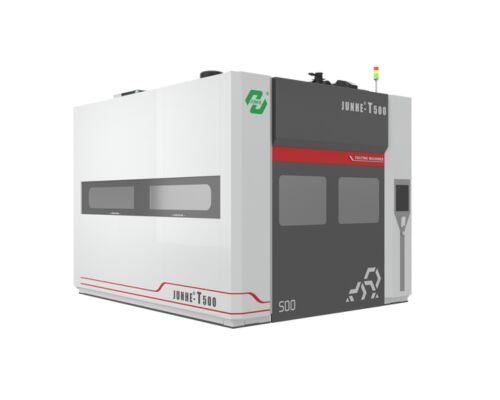

JUNHE® TDSP0500 Six-Basket Planetary Coating Machine, planetary centrifugal type, automatic control, process under complete control.
Equipment main body
1. Weighing loading system.
2. Dip-spin coating system.
3. Conveyor distributor.
4. Operation control system.
Features
1. Suitable for all kinds of paints including Zinc Aluminum flake microlayer corrosion coating, top coat, sealing agent, Teflon, etc.
2. Intelligent weighing for 2 times, reduce deviation, ensure full-time dynamic balance, full automatic loading.
3. Basket planetary distribution, combines revolution with autorotation, reversing to make the workpiece position interchangeable, remove the workpiece remained fluid effectively, get the high qualification rate.
4. Intelligent feeding system, connection for each basket, workpieces evenly spread, to avoid accumulation.
5. One-button intelligent start, transmission speed in frequency conversion and adjustable, high degree of automation, reduce production cost, fully controlled , timely test and feedback, to meet customer's curing process requirements.
